DS1338Z-33

real-time clock, 8-SOIC, 3 V ~ 5.5 V, 56 byte, DS1338Z-33, Maxim

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.12~1.35 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.12~1.35

PartNumber:: DS1338Z-33

Brand:: Maxim Integrated Products - Maxim | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. JANE's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-02

From Other Seller

Part Number:DS1338Z-33
US $1.12 - 1.35
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

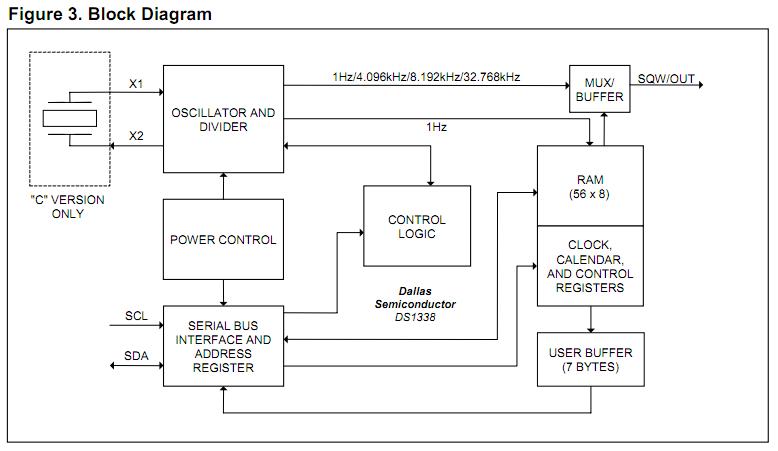

The DS1338Z-33 is a real-time clock (RTC). It is a low-power, full binary-coded decimal (BCD) clock/calendar plus 56 bytes of NV SRAM. Address and data are transferred serially through an I2C interface. The DS1338Z-33 provides seconds, minutes, hours, day, date, month, and year information. The end of the month date is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The DS1338Z-33 operates in either the 24-hour or 12-hour format with AM/PM indicator. The DS1338Z-33 has a built-in power-sense circuit that detects power failures and automatically switches to the battery supply. The applications of the DS1338Z-33 include Handhelds (GPS, POS Terminal), Consumer Electronics (Set-Top Box, Digital Recording, Network Appliance), Office Equipment (Fax/Printer, Copier), Medical (Glucometer, Medicine Dispenser), Telecommunications (Router, Switcher, Server) and Other (Utility Meter, Vending Machine, Thermostat, Modem).

Parametrics

DS1338Z-33 absolute maximum ratings: (1)Voltage Range on Any Pin Relative to Ground: -0.3V to +6.0V; (2)Operating Temperature Range: -40 to +85℃; (3)Storage Temperature Range: -55 to +125℃.

Features

DS1338Z-33 features: (1)RTC Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap-Year Compensation Valid Up to 2100; (2)Available in a Surface-Mount Package with an Integrated Crystal (DS1338C); (3)56-Byte Battery-Backed NV RAM for Data Storage; (4)I2C Serial Interface; (5)Programmable Square-Wave Output Signal; (6)Automatic Power-Fail Detect and Switch Circuitry; (7)Underwriters Laboratory (UL) Recognized.
