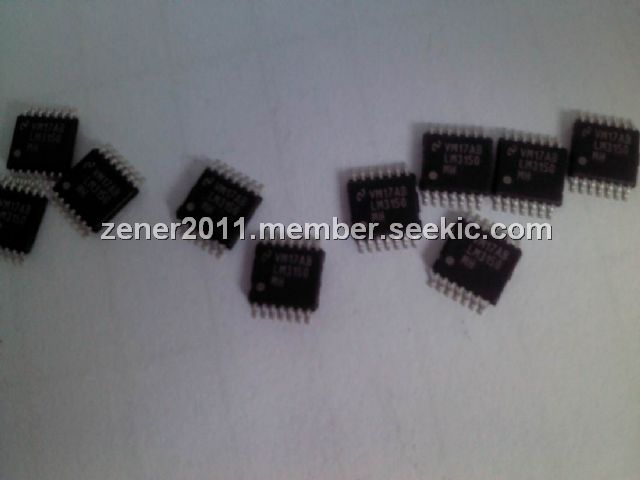

Product Summary
The LM3150MH is a simple switcher Controller. It is an easy to use and simplified step down power controller capable of providing up to 12A of output current in a typical application. Operating with an input voltage range of 6V-42V, the LM3150MH features an adjustable output voltage down to 0.6V. The switching frequency is adjustable up to 1 MHz and the syn- chronous architecture provides for highly efficient designs. The LM3150MH controller employs a Constant On-Time (COT) architecture with a proprietary Emulated Ripple Mode (ERM) control that allows for the use of low ESR output capacitors, which reduces overall solution size and output voltage ripple. The Constant On-Time (COT) regulation architecture allows for fast transient response and requires no loop compensation, which reduces external component count and reduces design complexity. The typical applications of the LM3150MH inlcude Telecom, Networking Equipment, Routers, Security Surveillance and Power Modules.
Parametrics
LM3150MH absolute maximum ratings: (1)VIN, RON to GND: -0.3V to 47V; (2)SW to GND: -3V to 47V; (3)BST to SW: -0.3V to 7V; (4)BST to GND: -0.3V to 52V; (5)All Other Inputs to GND: -0.3V to 7V; (6)ESD Rating: 2 kV; (7)Storage Temperature Range: -65 to +150℃.
Features
LM3150MH features: (1)PowerWise step-down controller; (2)6V to 42V Wide input voltage range; (3)Adjustable output voltage down to 0.6V; (4)Programmable switching frequency up to 1 MHz; (5)No loop compensation required; (6)Fully WEBENCH enabled; (7)Low external component count; (8)Constant On-Time control; (9)Ultra-fast transient response; (10)Stable with low ESR capacitors; (11)Output voltage pre-bias startup; (12)Valley current limit; (13)Programmable soft-start.

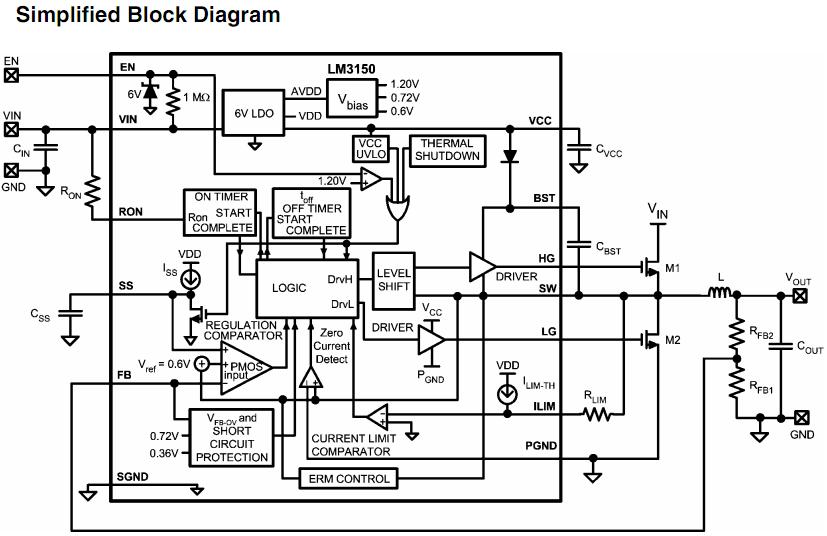

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM3150MH/NOPB |
National Semiconductor (TI) |
DC/DC Switching Controllers 42V SYNC STEP-DOWN |
Data Sheet |
|
|
||||||||||||
|
LM3150MHE/NOPB |
National Semiconductor (TI) |
DC/DC Switching Controllers 42V SYNC STEP-DOWN |
Data Sheet |
|
|
||||||||||||
|
LM3150MHX/NOPB |
National Semiconductor (TI) |
DC/DC Switching Controllers |
Data Sheet |
|
|
||||||||||||
