Product Summary

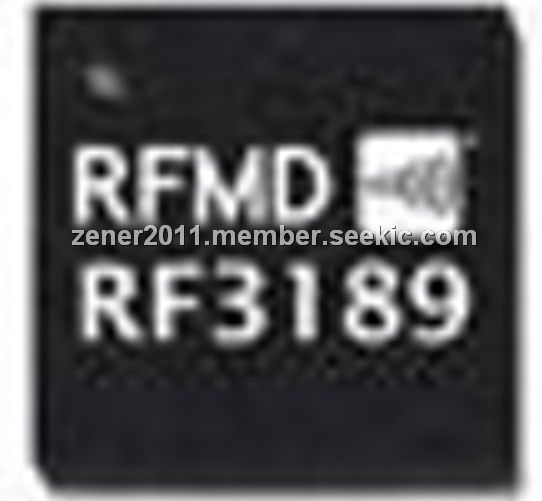

The RF3189 is a low-loss, compact, and economical surface-acoustic-wave (SAW) filter designed to provide front-end selectivity in 916.5 MHz receivers. Receiver designs using the RF3189 include superhet with 10.7 MHz or 500 kHz IF, direct conversion and superregen. Typical applications of the RF3189 are wireless remotecontrol and security devices operating in the USA under FCC Part 15 and in Canada under DoC RSS-210. This coupled-resonator filter (CRF) uses selective null placement to provide suppression, typically greater than 40 dB, of the LO and image spurious responses of superhet receivers with 10.7 MHz IF. RFMs advanced SAW design and fabrication technology is utilized to achieve high performance and very low loss with simple external impedance matching (not included). Quartz construction provides excellent frequency stability over a wide temperature range.
Parametrics
RF3189 absolute maximum ratings: (1)Incident RF Power: +13 dBm; (2)DC Voltage Between Any Two Pins (Observe ESD Precautions): ±30 VDC; (3)Case Temperature: -40 to +85 ℃; (4)Soldering Temperature (10 seconds / 5 cycles max.): 260 ℃; (5)3 dB Bandwidth BW: 1000 kHz.
Features
RF3189 features: (1)Ideal Front-End Filter for 916.5 MHz Wireless Receivers; (2)Low-Loss, Coupled-Resonator Quartz Design; (3)Simple External Impedance Matching; (4)Rugged TO39 Hermetic Package; (5)Complies with Directive 2002/95/EC (RoHS).
Diagrams
 |
