Product Summary
The RD3.9UM-T1 is a 2-pin Ultra Super Mini Mold Package zener diode. It is possessing an allowable power dissipation of 150 mW. The applications of the RD3.9UM-T1 include Circuits for Constant Voltage, Constant Current, Waveform clipper, Surge absorber, etc.
Parametrics
RD3.9UM-T1 absolute maximum ratings: (1)Power Dissipation, P: 150 mW; (2)Forward Current, IF: 100 mA; (3)Junction Temperature, Tj: 150℃; (4)Storage Temperature, Tstg: –55 to +155℃.
Features
RD3.9UM-T1 features: (1)Sharp Breakdown characteristics; (2)VZ; Applied E24 standard.

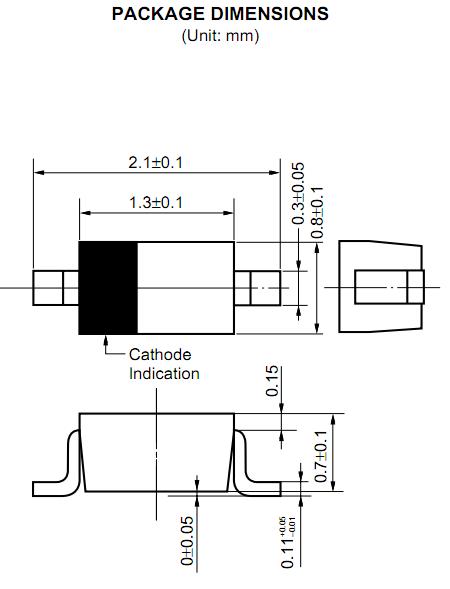

Diagrams
 |
