Product Summary
The RPM-075PT is a Quite new phototransistor which peak sensitivity is designed as same level as human eye. Best sensor to detect illuminance. (Peak sensitivity is 600nm.) Small and light weight package which can be used for reflow soldering and Pd free soldering. The applications of the RPM-075PT include Control of lighting cellular phones, LCD displays, etc. and Control of strobe. (DSC, camcorder, etc.).
Parametrics
RPM-075PT absolute maximum ratings: (1)Collector-emitter voltage, VCEO: 20V; (2)Emitter-collector voltage, VECO: 5V; (3)Collector current, IC: 10mA; (4)Collector power dissipation, PC: 50mW; (5)Operating temperature, Topr: -30 to 85℃; (6)Storage temperature, Tstg: -40 to 100℃.
Features
RPM-075PT features: (1)Best sensor to detect illuminance. (Peak sensitivity is 600nm.); (2)Small (2125) and light weight package (3mg) which can be used for reflow soldering and Pd free soldering; (3)Linear against wide range of illuminance from a few Lx to 10000Lx over; (4)Use Si good for an environ ment. (not CdS).

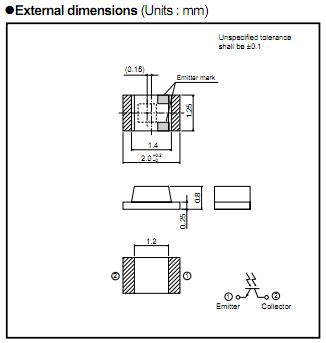

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RPM-075PT |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |

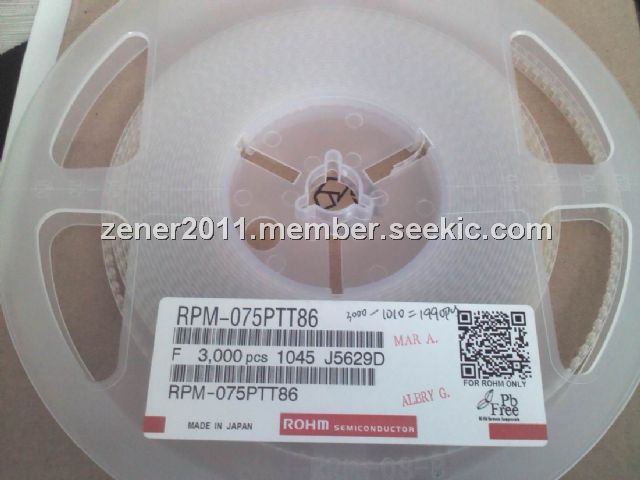

RPM-075PTT86 |
ROHM Semiconductor |
Photodetector Transistors PHOTO LINK MODULE |
Data Sheet |
|
|
||||||||||||
